How to Build an Intranet Mapping Tunnel Using Cloud Server

Preface#

I actually did this content a year ago, (previously written), and after setting it up, I also let my friends use it. In practice, I found that having users install the client themselves or adding the client as a service is quite troublesome for users; there is a certain threshold, and it's not very convenient. While browsing Interesting Open Source Community - HelloGitHub these days, I discovered a pretty good frp client project—luckjiawei/frpc-desktop: frp cross-platform desktop client, visual configuration, easily achieve intranet penetration! Supports all frp versions. I took a quick look, the interface is quite nice, and the operation is not complicated, OK, it's you.

Server Installation#

Preparation#

This setup requires two open-source projects

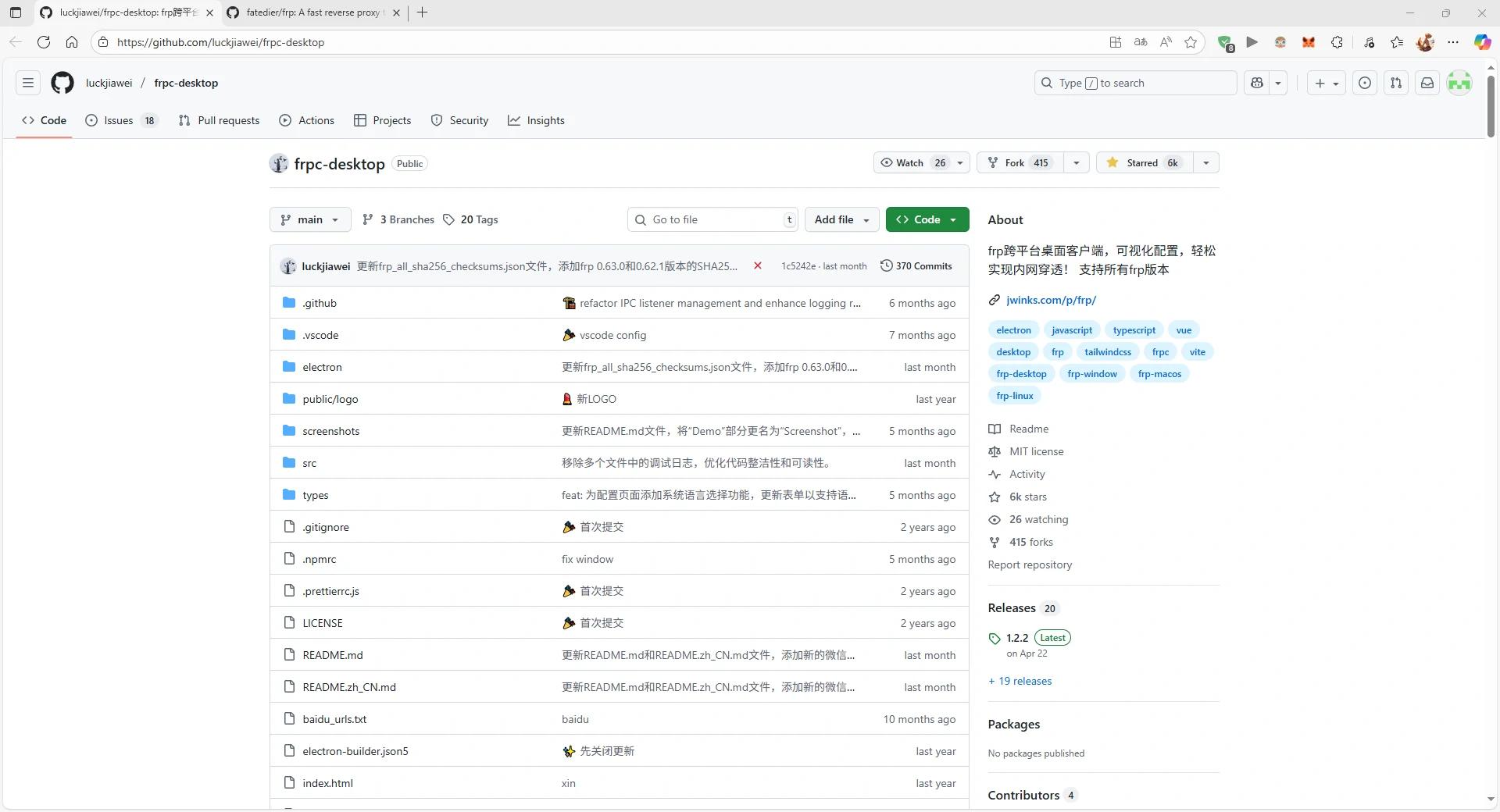

luckjiawei/frpc-desktop: frp cross-platform desktop client, visual configuration, easily achieve intranet penetration! Supports all frp versions

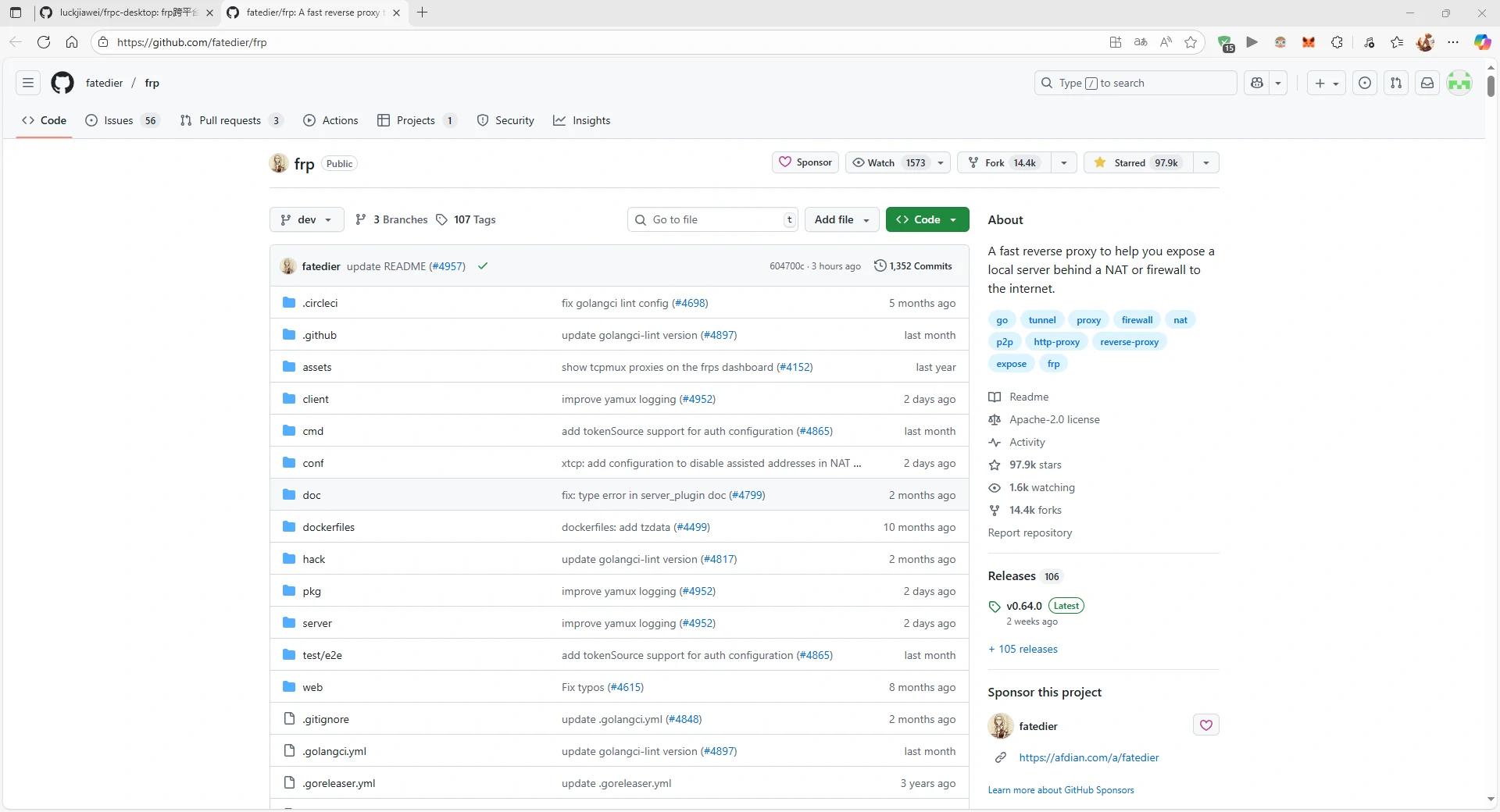

fatedier/frp: A fast reverse proxy to help you expose a local server behind a NAT or firewall to the internet.

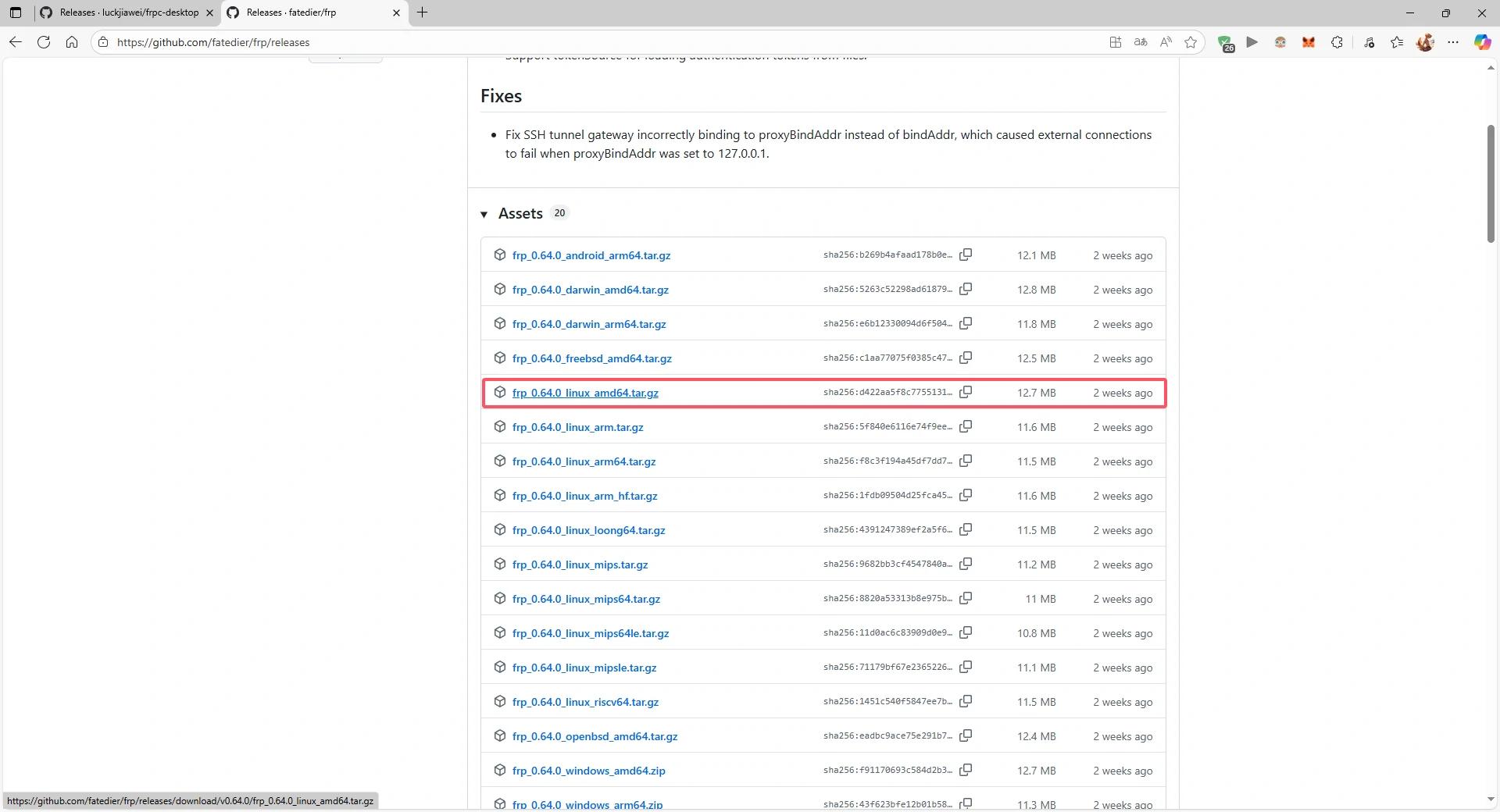

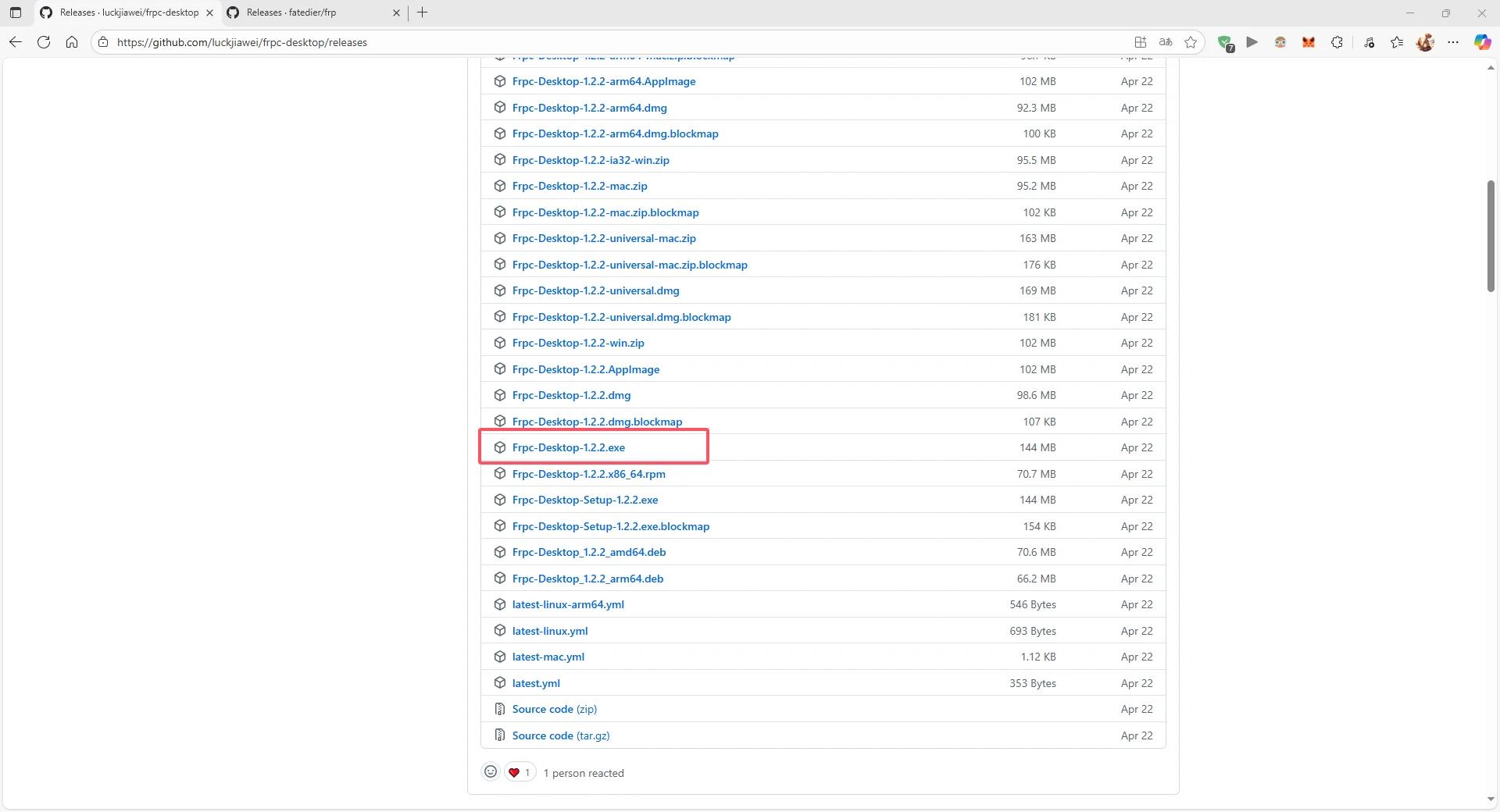

The files to download are as follows
frp server
frp client

Install frp Server#

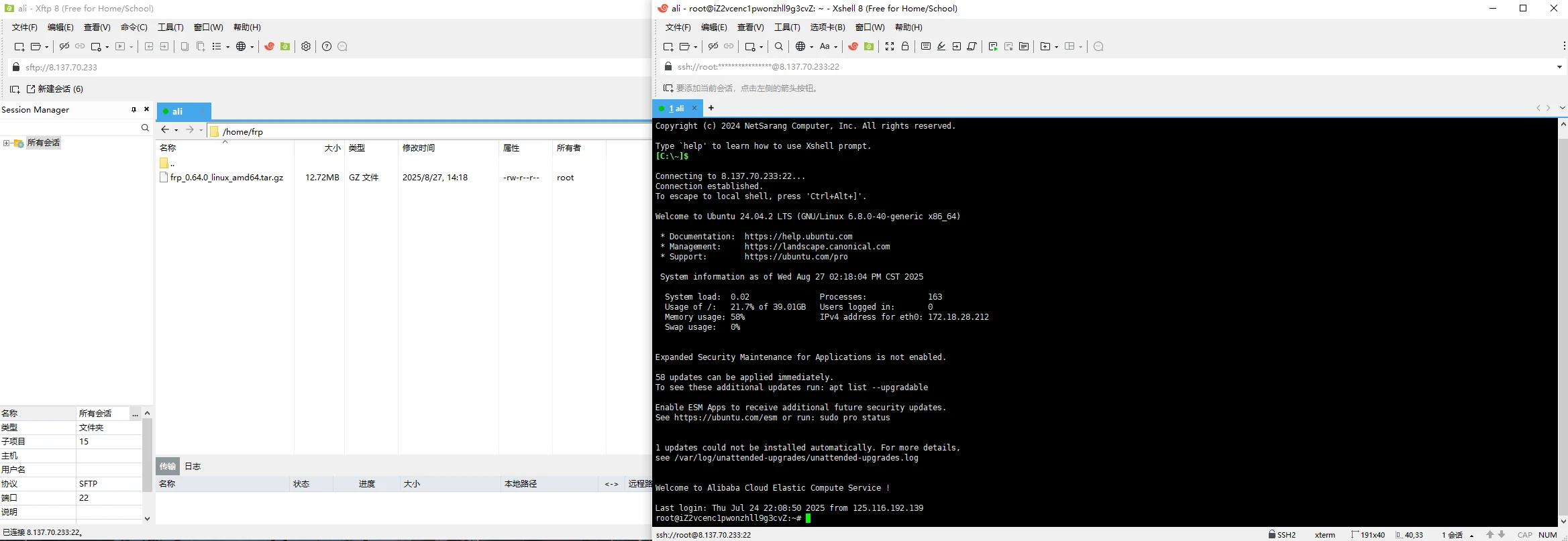

Connect to the server and upload the server files. I used Xftp 8 and Xshell 8 to connect to the server.
Switch to the corresponding path and unzip the files
cd /home/frp
tar -zxvf frp_0.64.0_linux_amd64.tar.gz

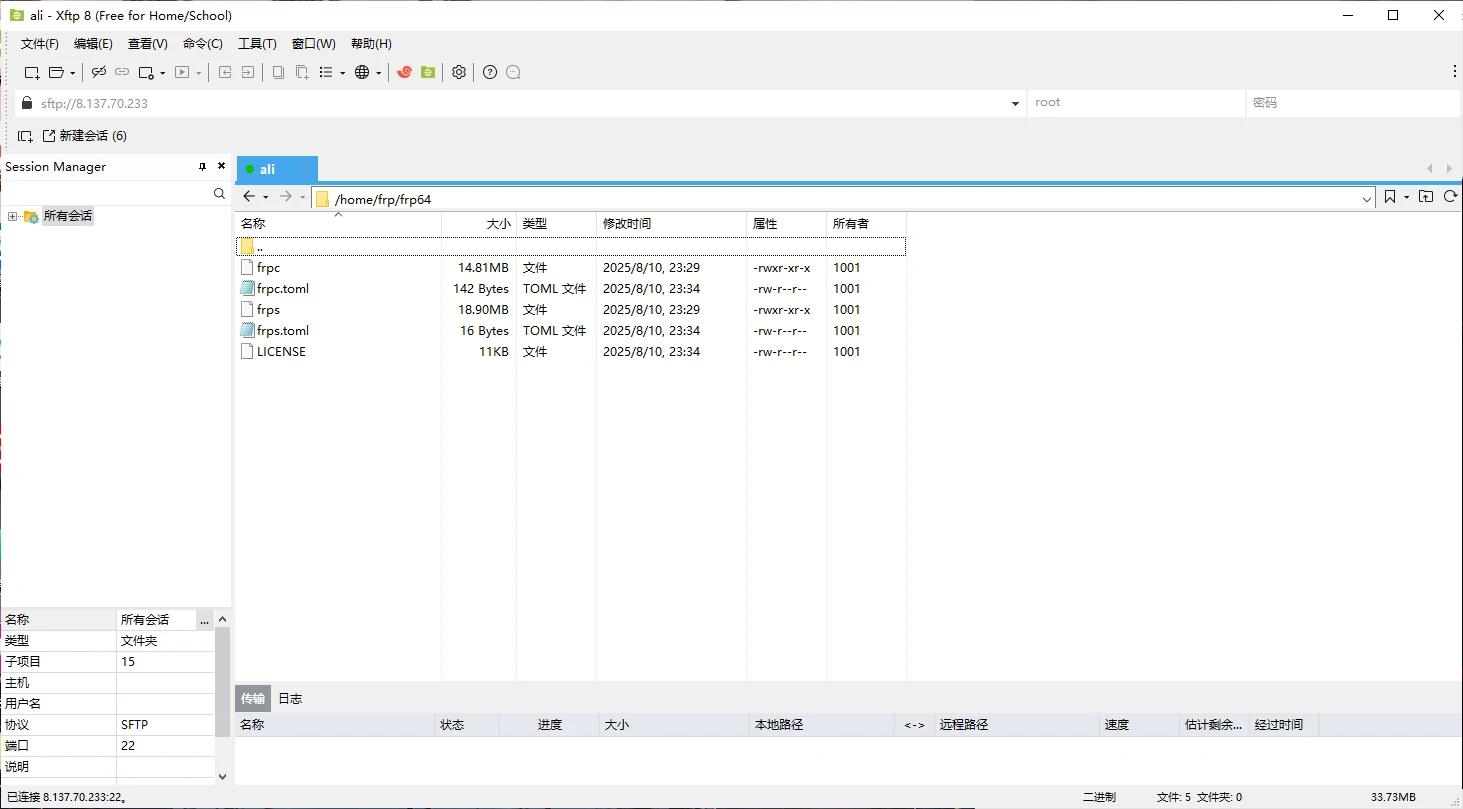

After unzipping, rename the folder for easier path input later. The frps.toml is the server's configuration file, and frps is the server binary program.

Modify the configuration file
vim frps.toml
Modify configuration file

Press i to start typing, ESC then type to exit editing

bindPort = 7000 # Server port
auth.method = "token" # Use token for authentication
auth.token = "[email protected]" # Token, must match between client and server for successful connection. Recommended to configure it to be more complex.

Start the server
./frps -c ./frps.toml

Add frp as a service and enable it to start on boot

Press CTRL+C to interrupt the process

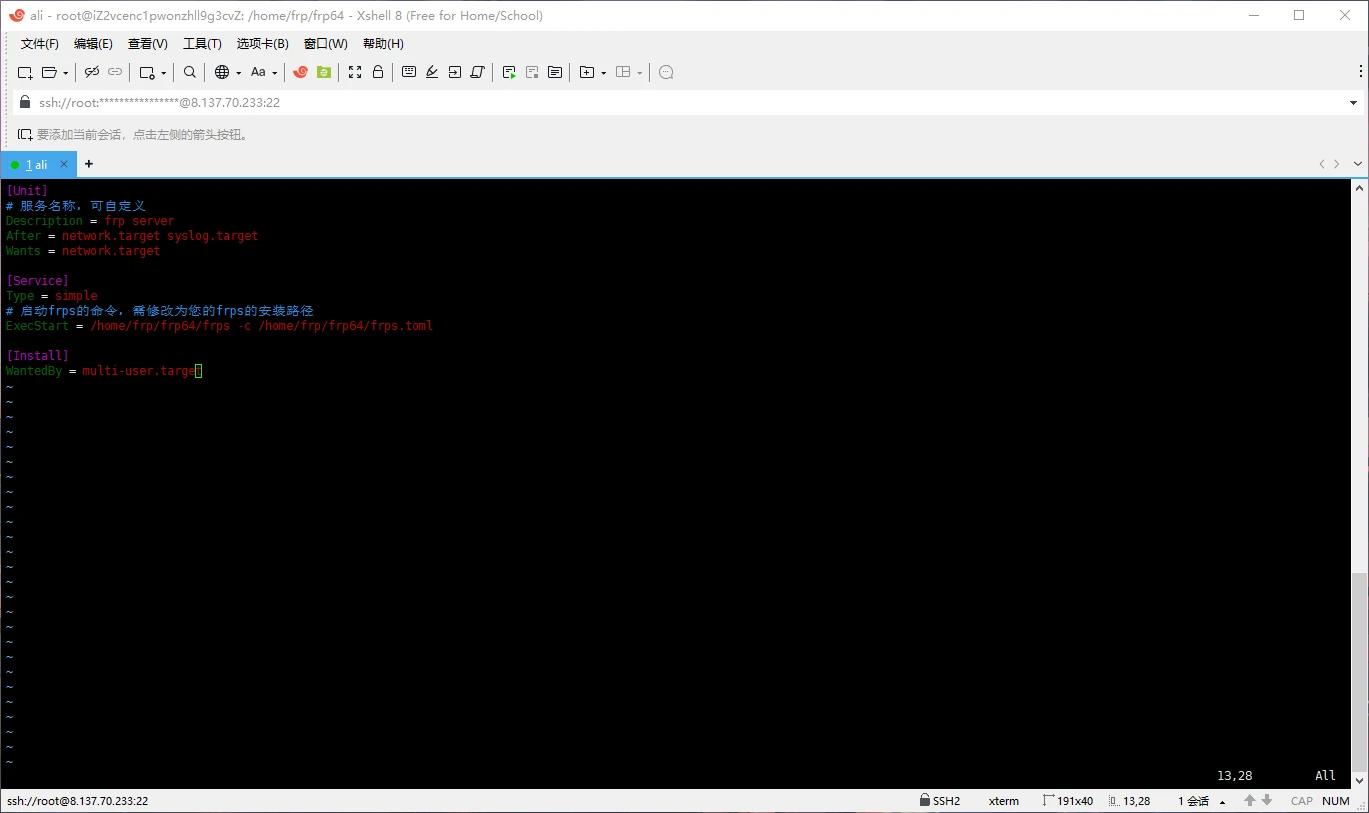

Create frps.service file sudo vim /etc/systemd/system/frps.service
Write the content

[Unit]
# Service name, can be customized
Description = frp server
After = network.target syslog.target
Wants = network.target

[Service]
Type = simple
# Command to start frps, must change to your frps installation path
ExecStart = /path/to/frps -c /path/to/frps.toml

[Install]
WantedBy = multi-user.target

Start frp and set it to start on boot

# Start frp
sudo systemctl start frps
# Stop frp
sudo systemctl stop frps
# Restart frp
sudo systemctl restart frps
# Check frp status
sudo systemctl status frps
Set frps to start on boot
sudo systemctl enable frps

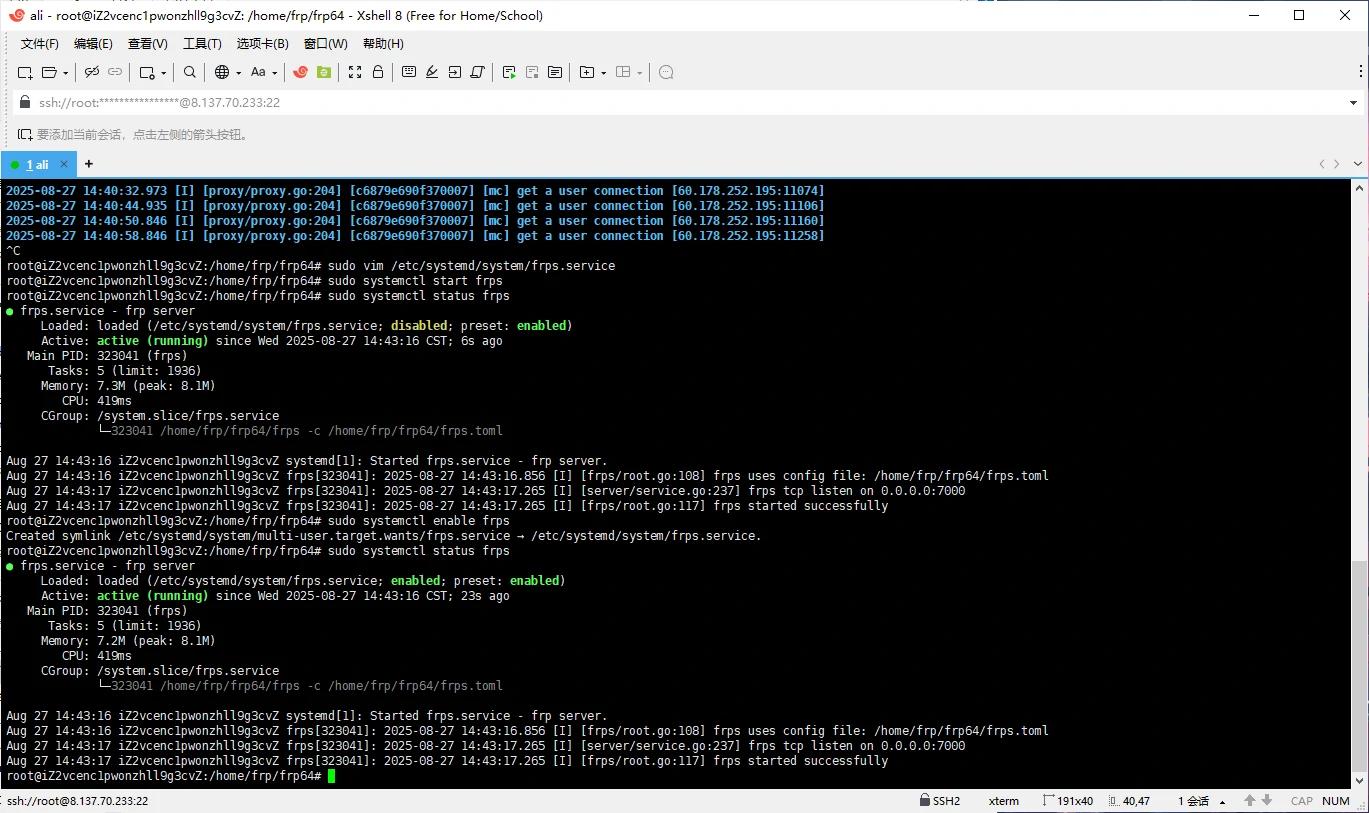

When you see two enabled and active (running), it means it is running normally.
Check frp status

Enable Firewall#

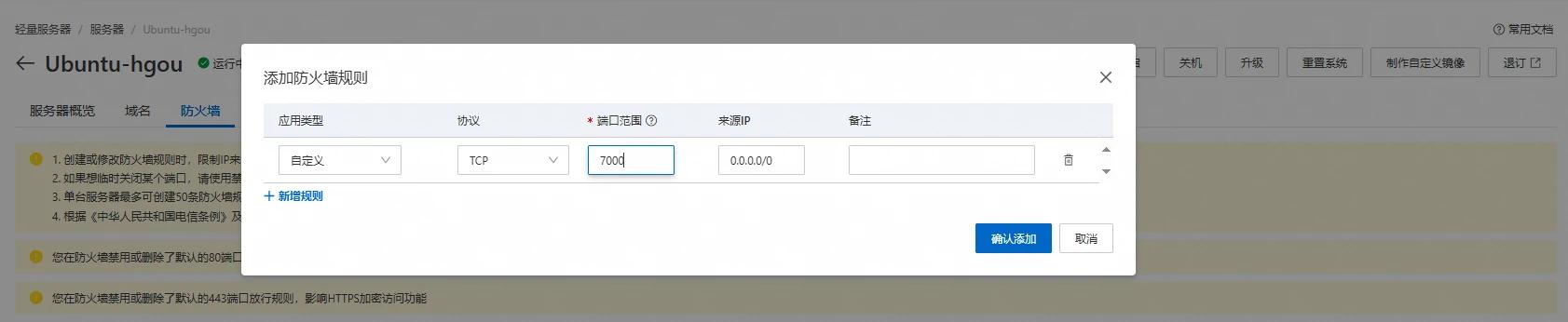

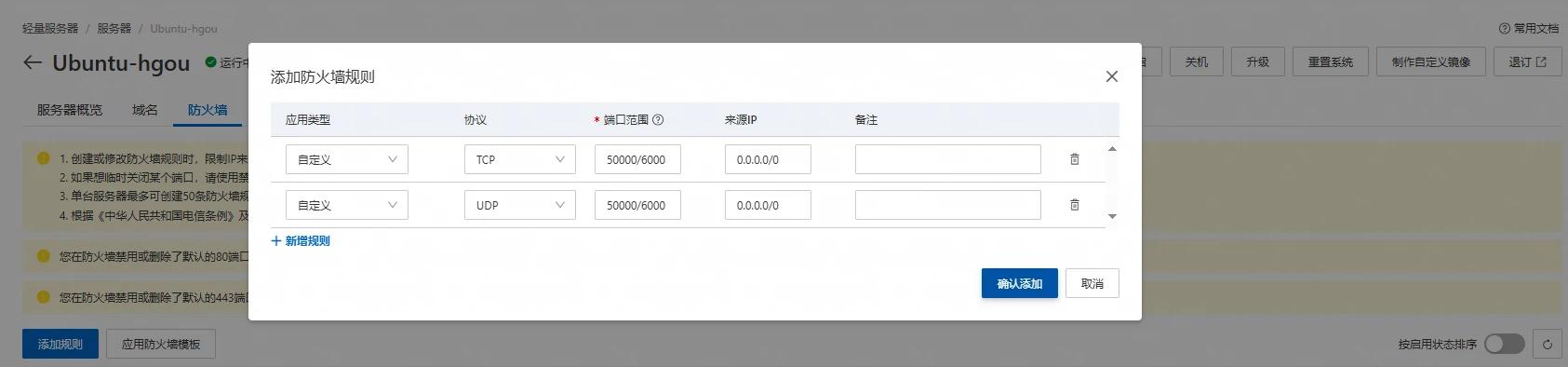

I am using Alibaba's cloud server, go to Alibaba's console to enable the firewall. Here, you need to open port 7000 and the target port you need to map. I opened all ports from 50000 to 60000.
Enable firewall

Install frp Client#

The installation of the client on Windows is quite convenient; just keep clicking next.
After installation, you need to connect to the server.

Download the corresponding frp version in the settings. My server uses 0.64.0, so I am also using 0.64.0 here. If the language is not Chinese, you can switch the language at the bottom.
Enter the server address, port, select token for authentication, and then input the token set earlier.
Set up the tunnel
Choose the proxy type you need, the internal address, and the ports on both sides. I will continue to use mc as an example.
After setting up, start frp to use it.

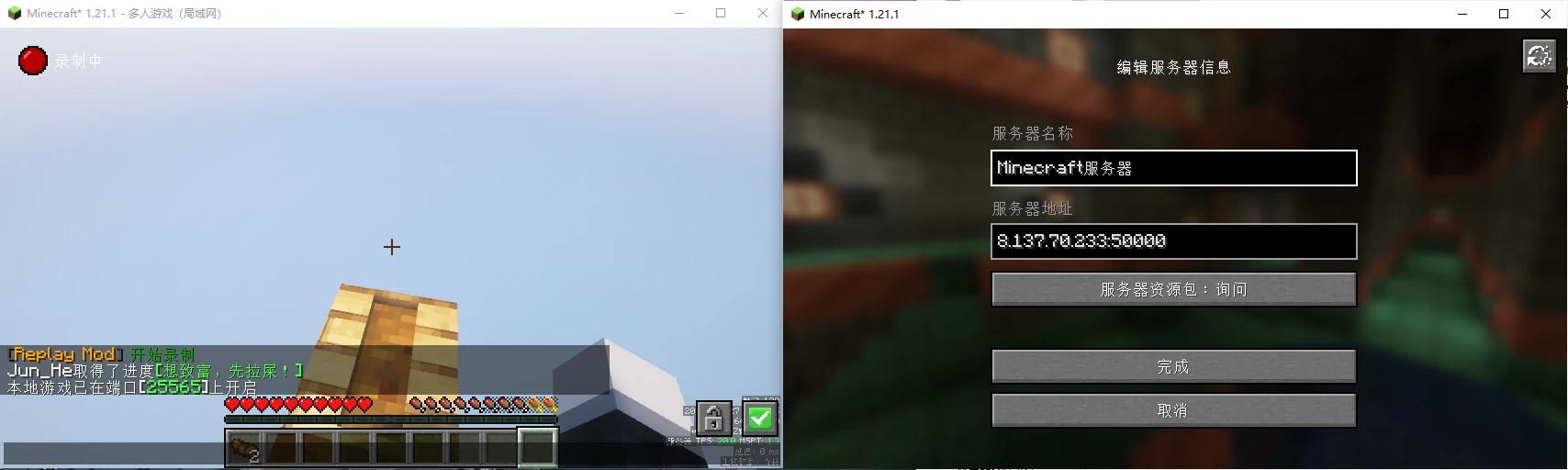

The final effect is as follows#

Final effect

Reference tutorials are as follows#

Conclusion#
